Complete and compact AFNOR and UNI ambulance system
Produktbeschreibung

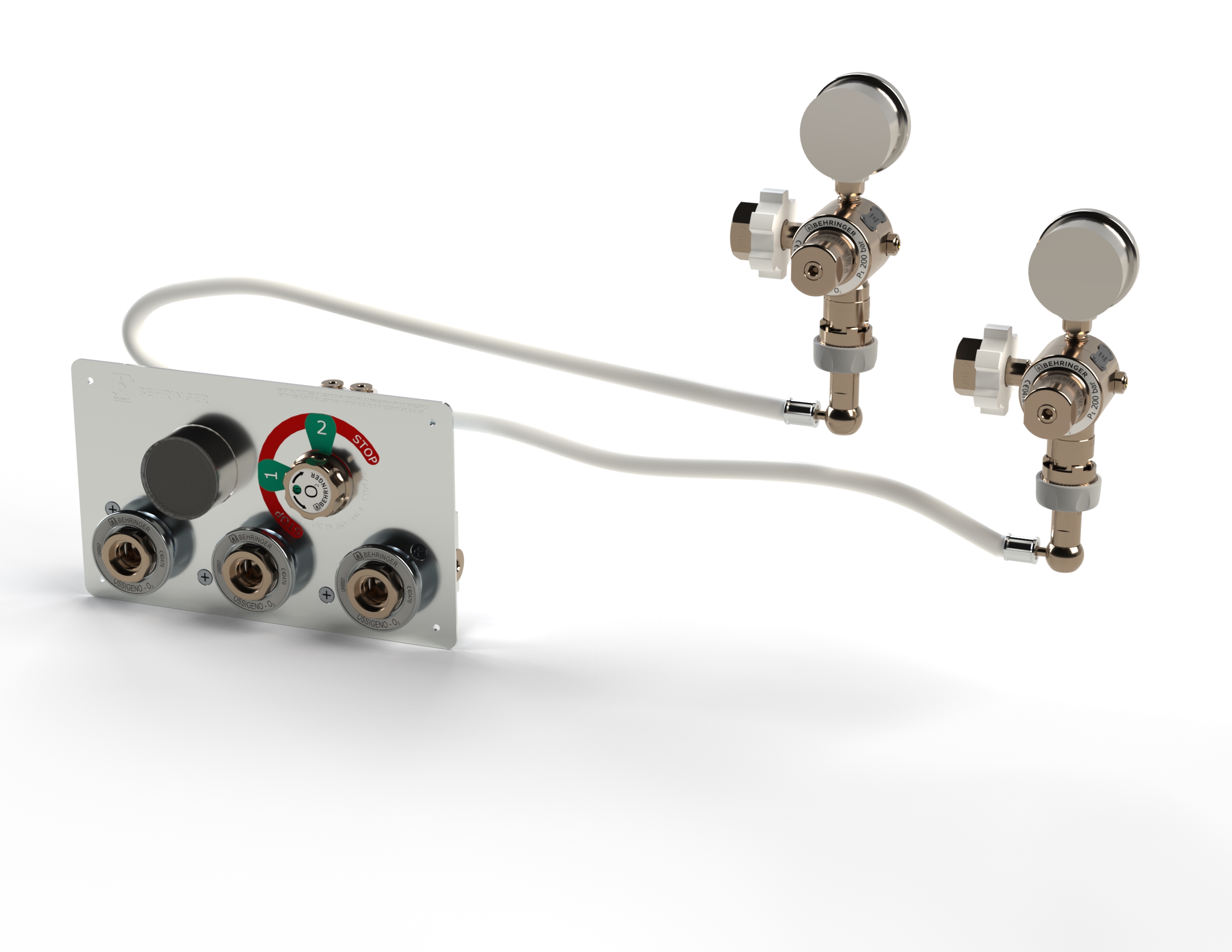

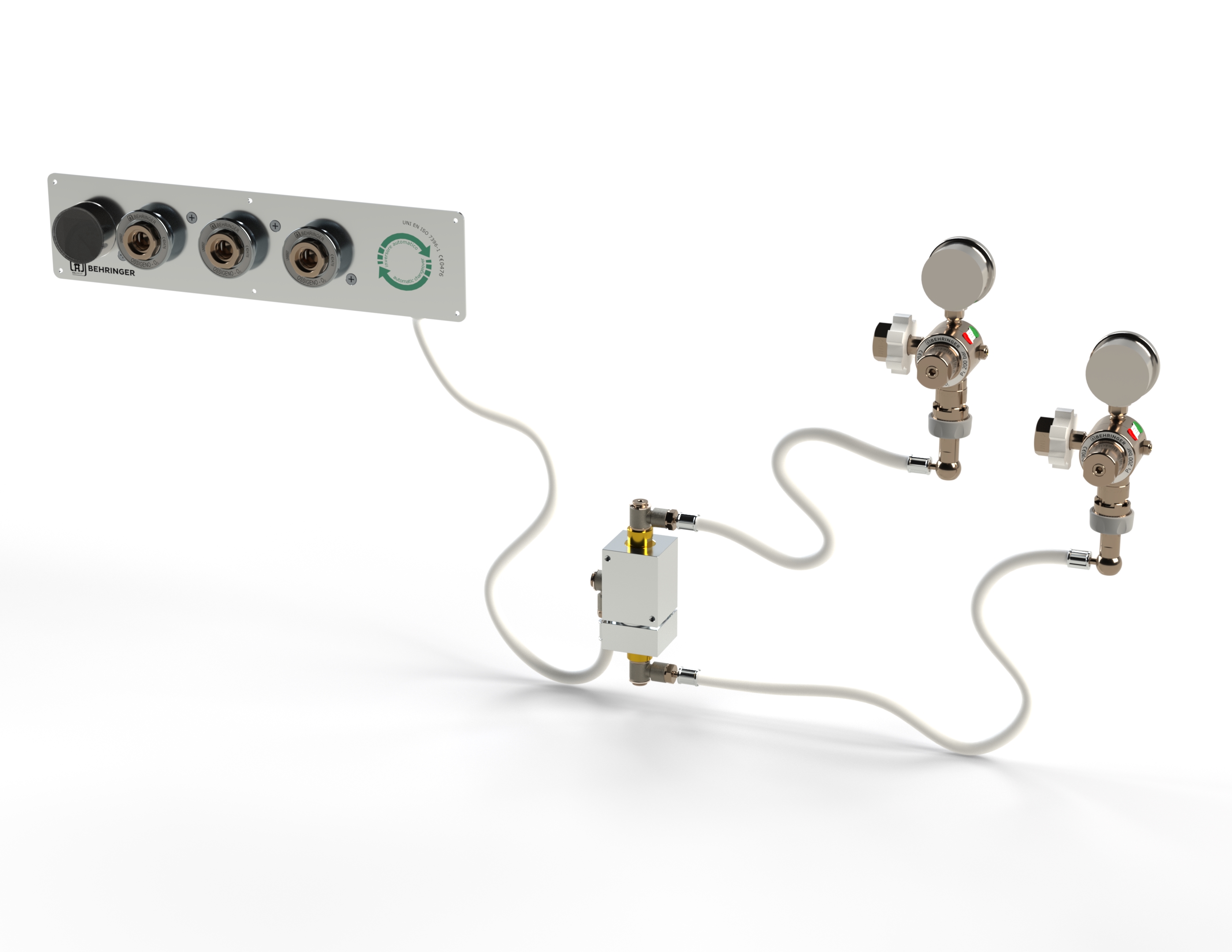

Oxygen distribution system for emergency vehicles, consisting of two cylinder reducers, two or three terminal units model UNI or AFNOR on a single block that can be in 2 versions in line or compact, complete with line pressure gauge, manual or automatic reverser for switching between I and II source; complete with silk-screen-printed aluminium plate for wall mounting; it is classified as a Medical Device in accordance with Regulation (EU) 2017/745 (MDR) active in class IIb; the system meets all the requirements indicated by the reference standards for medical gas distribution systems; simple system adaptable to any model of emergency vehicle. All components are assembled together by means of flexible low-pressure connections in accordance with UNI EN ISO 5359.
Normen
EN ISO 10524-1 | EN ISO 7396-1 | EN ISO 9170-1 | NF S 90-116 | UNI 9507 | EN ISO 5359 | EN ISO 15001Komponenten
N.2 HF model pressure reducers with manotransducer, output 4.....20mA, IP 65, cl. 2.5, 0-315 bar or pressure gauge scale 0-16 bar, cl. 2.5
N.1 pressure gauge scale 0-16 bar, cl. 2.5.
N.1 manual or automatic heat exchanger (I - II source).
Terminal units model UNI 9507 or AFNOR NF S 90-116
Wartungskit
Technische Daten

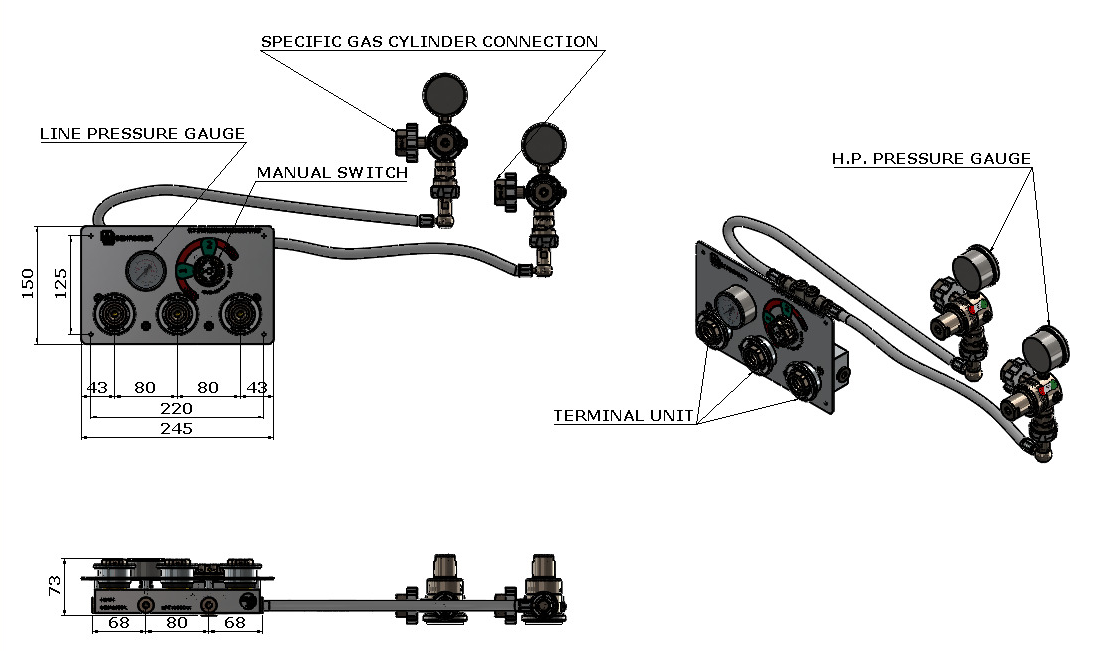

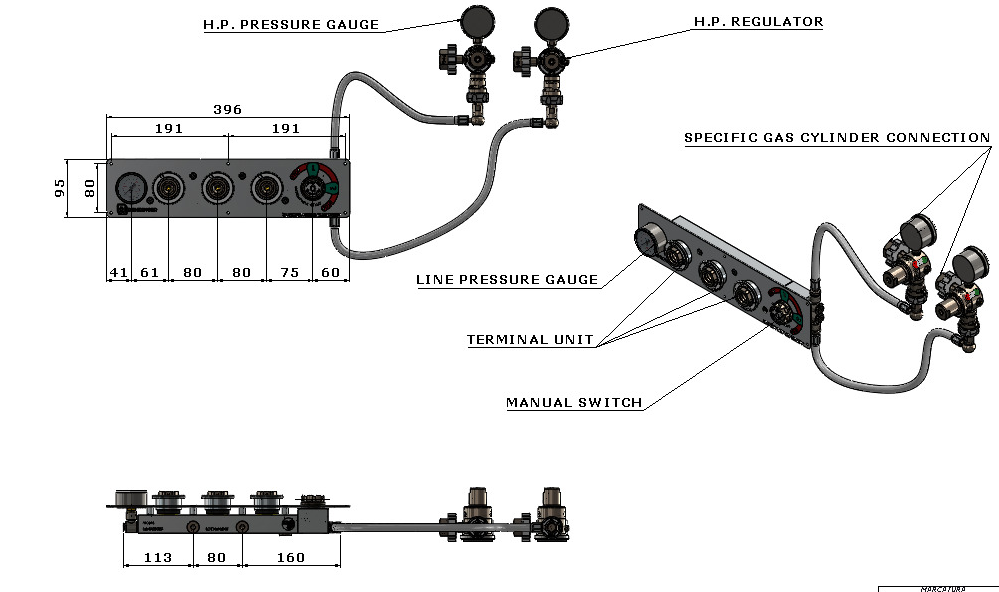

| CODE | BLOCK VERSION | MANOMETER WITH TRASDUCER | REDUCER OUTPUT | INVERSION | N° OF TERMINAL UNITS AND TYPE | OPERATION PRESSURE |
| HKAMB043 | IN LINE | YES | AFNOR NF S 90-116 SOCKET | MANUAL | N. 2 AFNOR NF S 90-116 | 4 ÷ 5 bar |
| HKAMB044 | IN LINE | NO | AFNOR NF S 90-116 SOCKET | MANUAL | N. 3 AFNOR NF S 90-116 | 4 ÷ 5 bar |
| HKAMB046 | IN LINE | YES | AFNOR NF S 90-116 SOCKET | AUTOMATIC | N. 3 UNI 9507 | 4 ÷ 5 bar |
| HKAMB047 | IN LINE | YES | G1/4"F | AUTOMATIC | N. 3 UNI 9507 | 4 ÷ 5 bar |
| HKAMB048 | COMPACT | YES | AFNOR NF S 90-116 SOCKET | AUTOMATIC | N. 3 UNI 9507 | 4 ÷ 5 bar |
| HKAMB049 | COMPACT | YES | AFNOR NF S 90-116 SOCKET | MANUAL | N. 3 UNI 9507 | 4 ÷ 5 bar |
