Nesplon 6/I
Produktbeschreibung

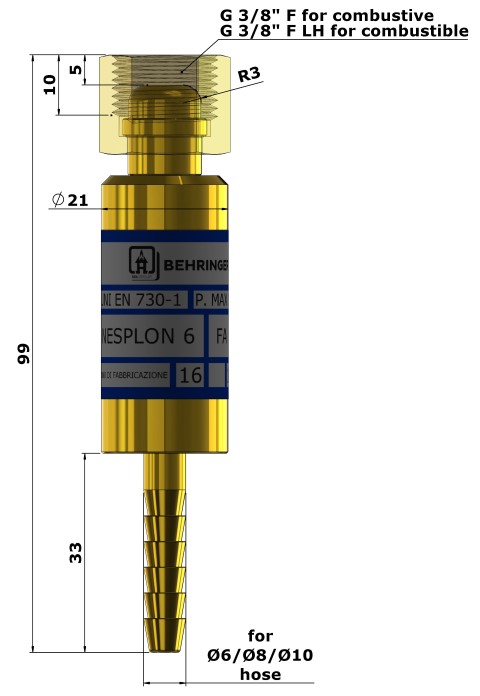

Nesplon 6/I valves are designed to be installed upstream of welding torches and grips; they’re fitted with flame arrestors and gas check valves.They can be used with comburent gas (oxygen) and fuel gas.Nesplon 6/I valves have an Ø 6/8/10 mm hose connector on the inlet. The G3/8" F threaded nut on the outlet has a right-hand thread for oxygen and a left-hand thread for fuel gases.We recommend replacing the Nesplon/6 valves in the case of a flashback, after 5 years from the date of installation and in any case after the time limit of 5 years plus 1 from the manufacturing date on the valve.
Normen
EN ISO 9539 | EN ISO 5175-1 | UNI 11627Komponenten
CW614N brass body and cut-off.
AISI 316 sintered stainless steel flashback arrestor filter.
Stainless steel springs.
Aluminum gaskets.
NBR O-ring.
Wartungskit
Technische Daten
| CODE | GAS | Q max. | P max. | INLET CONNECTION | OUTLET CONNECTION |
| VI6G0610 | FUELS | 45 Nm³/h | 4 bar | Ø 6/10 mm hose connector | G3/8" F L |
| VI6G06 | FUELS | 45 Nm³/h | 4 bar | Ø 6 mm hose connector | G3/8" F L |
| VI6G08 | FUELS | 45 Nm³/h | 4 bar | Ø 8 mm hose connector | G3/8" F L |
| VI6G10 | FUELS | 45 Nm³/h | 4 bar | Ø 10 mm hose connector | G3/8" F L |
| VI6O0610 | COMBURENTS | 67Nm³/h | 10 bar | Ø 6/10 mm hose connector | G3/8" F R |
| VI6O06 | COMBURENTS | 67Nm³/h | 10 bar | Ø 6 mm hose connector | G3/8" F R |
| VI6O08 | COMBURENTS | 67Nm³/h | 10 bar | Ø 8 mm hose connector | G3/8" F R |
| VI6O10 | COMBURENTS | 67Nm³/h | 10 bar | Ø 10 mm hose connector | G3/8" F R |
