Nesplon 6/I
Product description

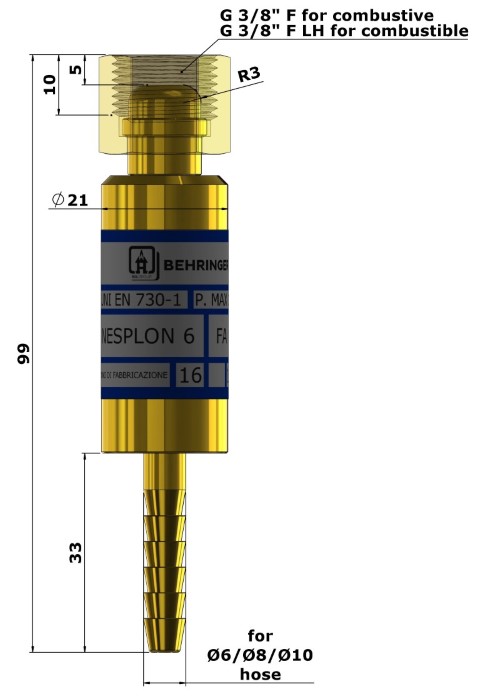

Nesplon 6/I valves are designed to keep the end utilities of industrial gas lines safe; they’re fitted with flame arrestors and gas check valves. They are installed directly on the grip of torches used for flaming slabs or edges; they’re suitable for both comburent gas (oxygen) and fuel gas (propane).Nesplon/6 valves have an Ø8 mm hose connector on the inlet. The G3/8" F threaded nut on the outlet has a right-hand thread for oxygen and a left-hand thread for propane.We recommend replacing the Nesplon 6/I valves in the case of a flashback, after 5 years from the date of installation and in any case after the time limit of 5 years plus 1 from the manufacturing date on the valve.
Normatives
EN ISO 9539 | EN ISO 5175-1Components
CW614N brass body and cut-off.
AISI 316 sintered stainless steel flashback arrestor filter.
Stainless steel springs.
Aluminum gaskets.
NBR O-rings.
Maintenance kit
Technical data
| CODE | GAS | Q max. | P max. | INLET CONNECTION | OUTLET CONNECTION |
| VI6G08 | FUELS | 45 Nm³/h | 4 bar | Ø 8 mm hose connector | G3/8" F L |
| VI6O08 | COMBURENTS | 67 Nm³/h | 10 bar | Ø 8 mm hose connector | G3/8" F R |
