EURO/7 pressure regulator workstation
Product description
Workstation designed to connect a user to a food-grade gas distribution network, used to reduce pressure on the line.The device consists of a single-gauge EURO pressure regulator, with CW614 chemically nickel-plated brass cap and body.The inlet and outlet connections have G3/8'' M R swivel connection with conical seals.Its maximum nitrogen capacity at 12 bar outlet pressure is 60 Nm³/h, 1000 Nl/min.
Normatives
EN ISO 2503 | EN ISO 5171 | EN ISO 9539 | Regulation (EC) n. 1935/2004Components
Body and cap made of CW614N chemically nickel-plated brass.
One G3/8" M R inlet, conical sealing.
One G3/8" M R outlet, conical sealing.
One outlet pressure gauge, with range according to model and Ø 63 mm, class 2.5.
Pressure adjustment by threaded screw and black ABS knob.
Stainless steel springs.
Stainless steel containment structure.
Screen printed aluminum cover.
Food-grade NBR diaphragm.
Silicone O-ring.
Teflon seat.
Nylon gaskets.
Maintenance kit
| CODE | DESCRIPTION |
| HKAL003 | FOOD WORKPLACE MAINTENANCE EQ |
Technical data
| CODE | Q max. | P1 max. | P2 max. | INLET CONNECTION | OUTLET CONNECTION | WEIGHT |
| HPLAL001 | 60 Nm³/h | 30 bar | 12 bar | G3/8"M R | Hose connection Ø 8 mm | 2,1 kg |
| HPLAL002 | 30 Nm³/h | 30 bar | 5 bar | G3/8"M R | Hose connection Ø 8 mm | 2,1 kg |
| HPLAL003 | 24 Nm³/h | 30 bar | 2 bar | G3/8"M R | Hose connection Ø 8 mm | 2,1 kg |

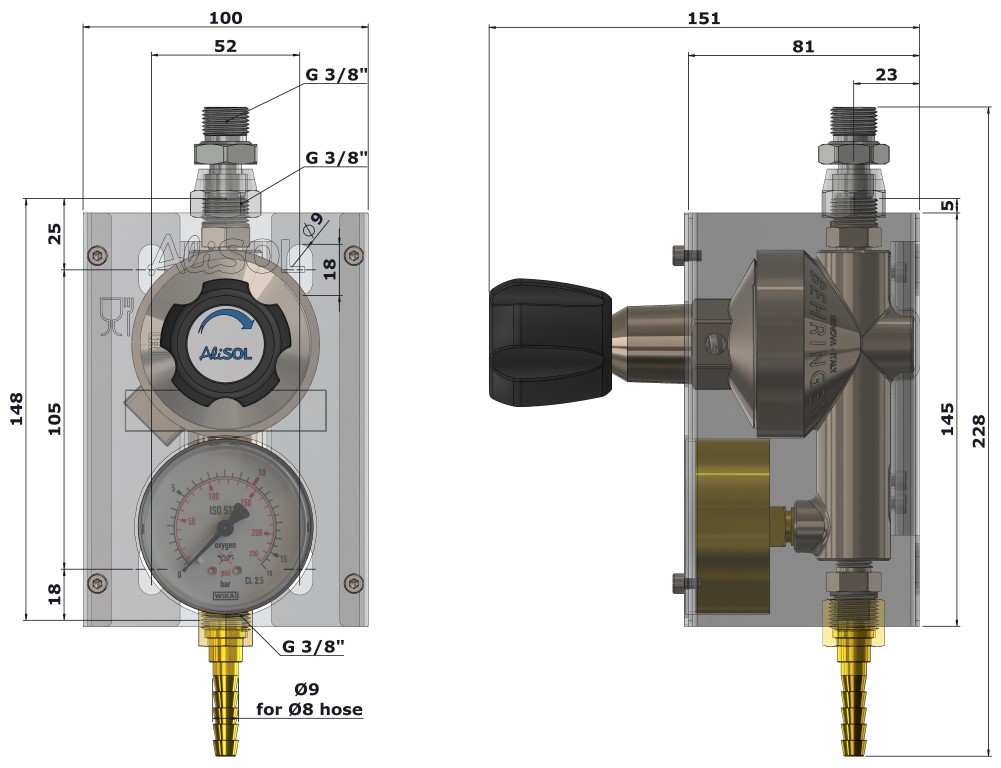

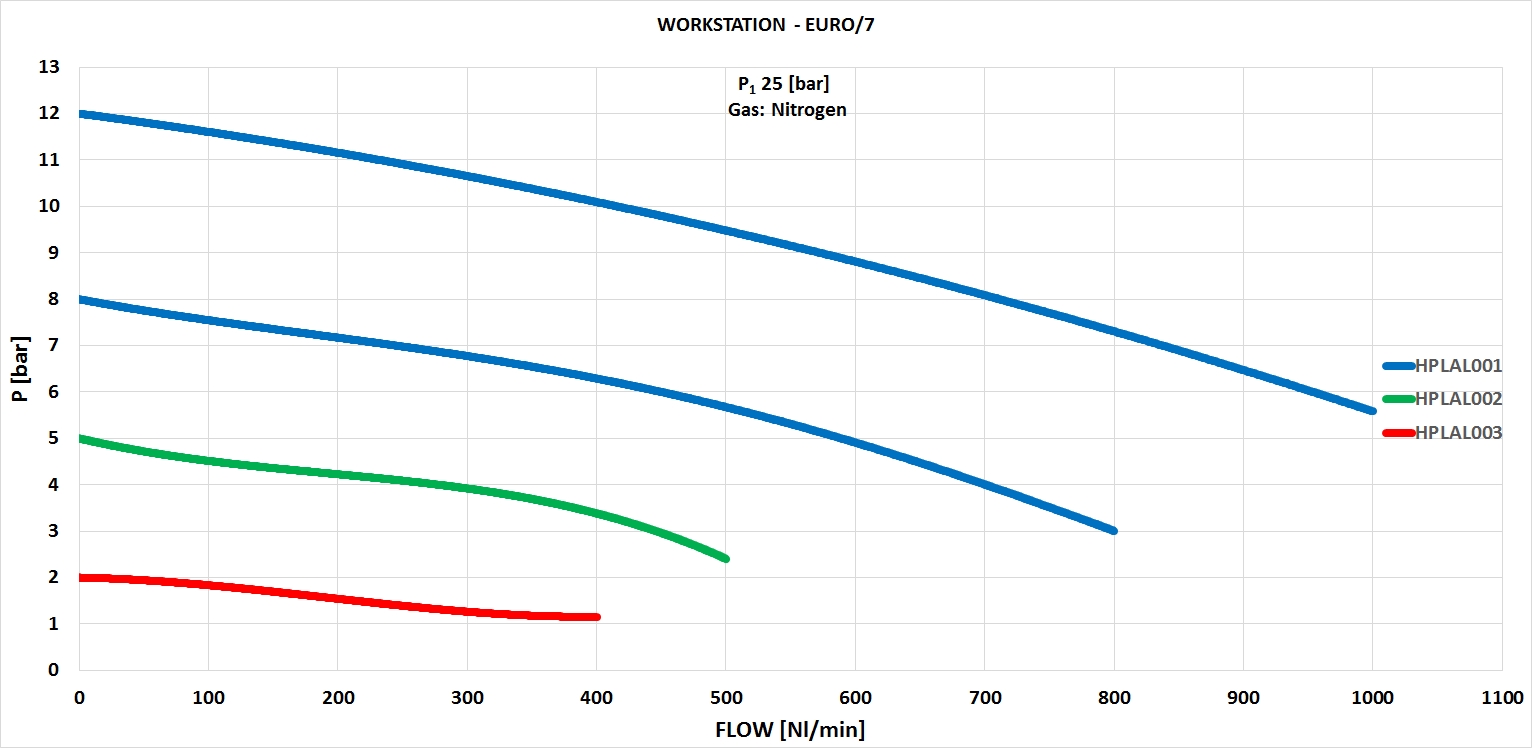

Images
