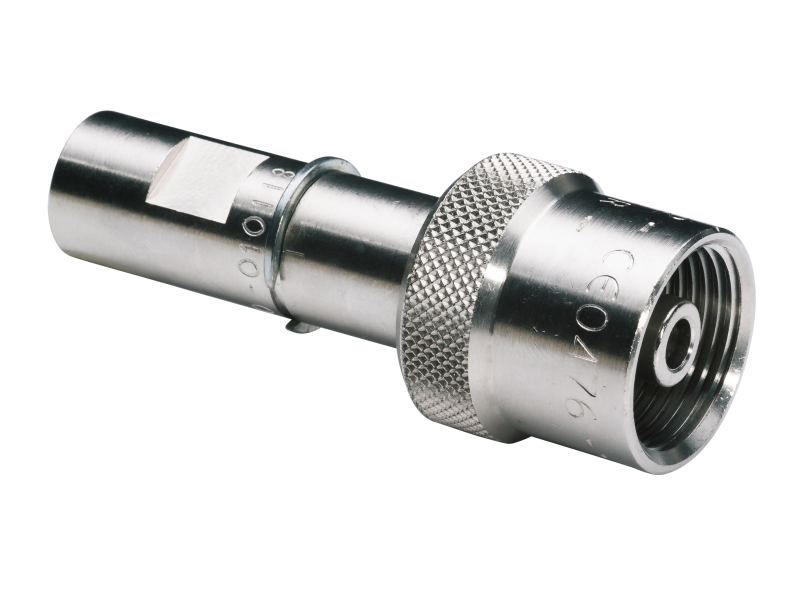

NIST ISO 18082 probe
Product description
The NIST coupling complies with the UNI EN ISO 18082:2018 standard, it allows the desired medicinal gas to be collected from the medical-hospital system. Each differs in size in such a way as to prevent interchangeability and therefore allows each individual coupling to be assigned to the respective corresponding gas outlet.
Normatives
EN ISO 9170-1 | EN ISO 15001 | EN ISO 18082Components
Body in chemically nickel-plated CW617N brass.
Seeger in galvanized steel.
EPDM PEROX O-Ring.
Maintenance kit
Technical data
| CODE | GAS | OUTLET | CONNECTION | WEIGHT |

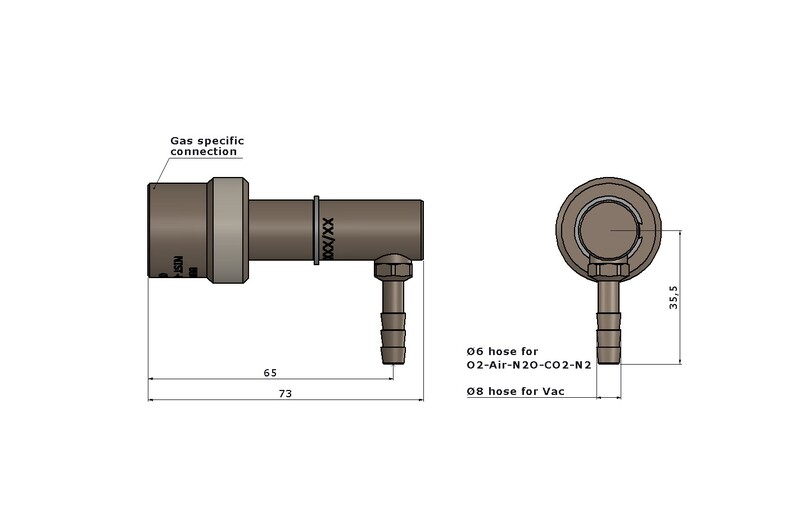

| HI059 | Air 800 | 90° | Hose connector Ø 6 mm | 0.16 kg |
| HI093 | O2 | 90° | Hose connector Ø 6 mm | 0.16 kg |
| HI094 | Air 400 | 90° | Hose connector Ø 6 mm | 0.16 kg |
| HI095 | N2O | 90° | Hose connector Ø 6 mm | 0.16 kg |
| HI096 | Vac | 90° | Hose connector Ø 6 mm | 0.16 kg |
| HI097 | CO2 | 90° | Hose connector Ø 6 mm | 0.16 kg |

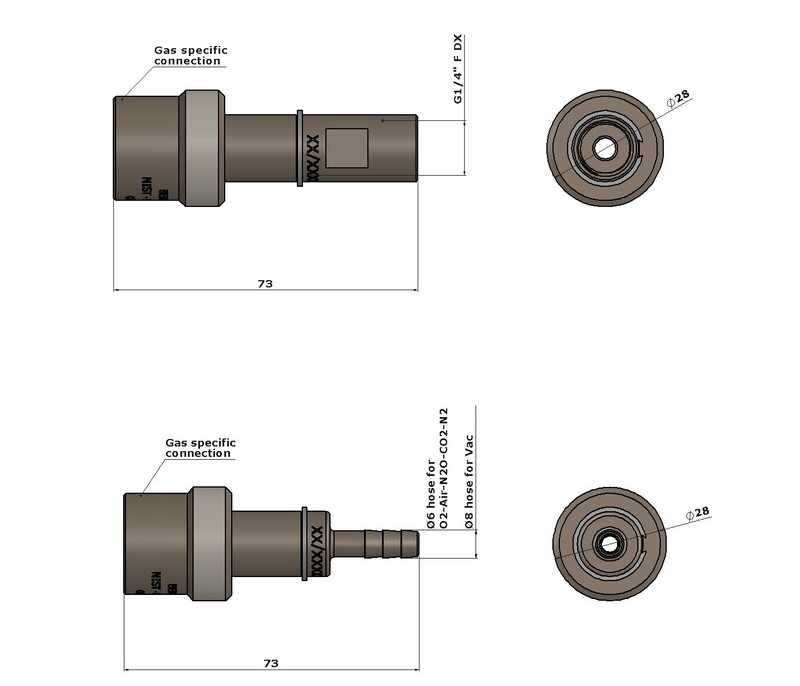

| HI060 | Air 800 | In line | G1/4" F R | 0.14 kg |
| HI080 | O2 | In line | G1/4" F R | 0.14 kg |
| HI081 | Air 400 | In line | G1/4" F R | 0.14 kg |
| HI082 | N2O | In line | G1/4" F R | 0.14 kg |
| HI083 | Vac | In line | G1/4" F R | 0.14 kg |
| HI084 | CO2 | In line | G1/4" F R | 0.14 kg |
| HI086 | O2 | In line | Hose connector Ø 6 mm | 0.12 kg |
| HI087 | Air 400 | In line | Hose connector Ø 6 mm | 0.12 kg |
| HI088 | Air 800 | In line | Hose connector Ø 6 mm | 0.12 kg |
| HI089 | N2O | In line | Hose connector Ø 6 mm | 0.12 kg |
| HI090 | Vac | In line | Hose connector Ø 8 mm | 0.12 kg |
| HI091 | CO2 | In line | Hose connector Ø 6 mm | 0.12 kg |
