Contact type pressure gauge
Product description

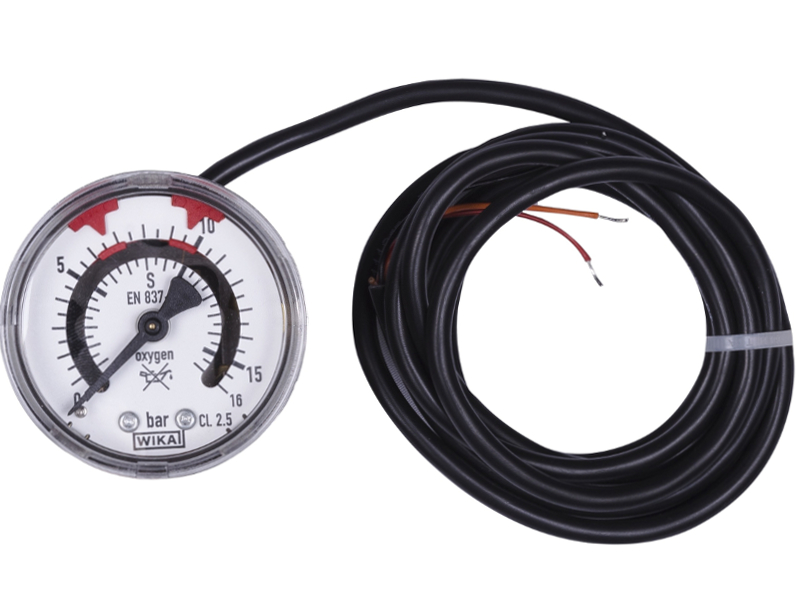

Electric contact pressure gauge compatible for medical use, class 2.5; when the pressure drops below the threshold, the device sends a signal to the alarm to which it is connected.
Dial case in stainless steel Ø 50 mm and nickel-plated attachment.
Electrical contact: Normally Open.
Degree of protection IP65.
Switching voltage: DC / AC 4.5 - 24 V.
Switching current: 5 - 100 mA.
Electrical connection: red Ub +, black SP1.
Normatives
EN 837-1 | EN 12094-10 | EN ISO 15001Components
Maintenance kit
Technical data
| CODE | Ø | CONNECTION | RANGE | TRESHOLD | CABLE LENGTH |
| HM106 | 50 mm | G1/4" M R - rear | 0-10 bar | 3,8 - 5,6 bar | 1,5 m |
| HM107 | 50 mm | G1/4" M R - rear | 0-16 bar | 6,5 - 9,5 bar | 1,5 m |
| HM108 | 50 mm | G1/4" M R - rear | -1-0 bar | -0,4 bar | 1,5 m |
