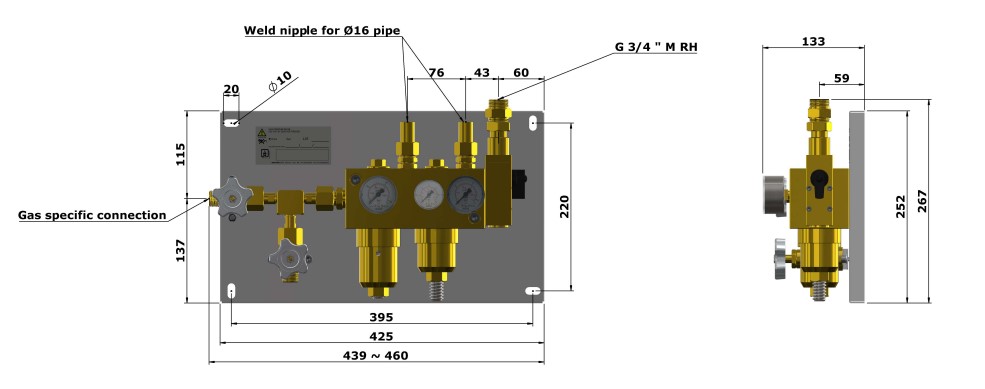

ECO/4 III source panel
Product description
III source panel for medicinal gases, available with pressure transducer or with pressure switch; consisting of a double-head reduction line, it guarantees continuous supply with high pressure stability; the outlet fitting is for a Ø 22 mm welded pipe; its maximum flow rate with nitrogen at 8 bar outlet pressure is 70 Nm³/h, 1166 Nl/min; the panel is completed by a powder coated steel plate and a white PETG cover that is light and practical to install.
Normatives
EN ISO 10524-2 | EN ISO 15001Components
No. 1 451 high pressure reducer in CW614N brass and pressure regulation with stainless steel threaded dowel.
No. 1 451 low pressure reducer in CW614N brass and pressure regulation with stainless steel threaded dowel.
No. 2 overpressure relief valves incorporated in CW614N brass reducers.
No. 1 outlet with connector for Ø22 mm welded pipe.
No. 1 shut-off valve for high pressure in CW614N brass with gas specific inlets.
No. 1 low pressure shut-off valve for maintenance.
No. 1 non return valve in CW614N brass.
No. 1 high pressure gauge, 0-315 bar scale, class 2.5.
No. 1 low pressure gauge, 0-16 bar scale, class 2.5.
No. 1 sintered bronze.
No. 1 transducer or pressure switch.
Stainless steel springs.
EPDM PEROX membranes.
NYLON seat.
EPDM PEROX O-Ring
NYLON gaskets.
Cover in WHITE PETG.
Fixing plate with powder coated finish.
Maintenance kit
Technical data
| CODE | Q max. | P1 max. | P2 | GAS | INLET CONNECTION | OUTLET CONNECTION |
| CQ174 | 90 Nm³/h | 200 bar | 9 bar | COMBURENTS - INERT | UNI-2 W21,7x1/14" 'A' RH | G 3/4" M RH |
| CQ177 | 90 Nm³/h | 200 bar | 9 bar | FUEL | UNI-1H W20x1/14" 'A' LH | G 3/4" M RH |
