Humidifier
Product description

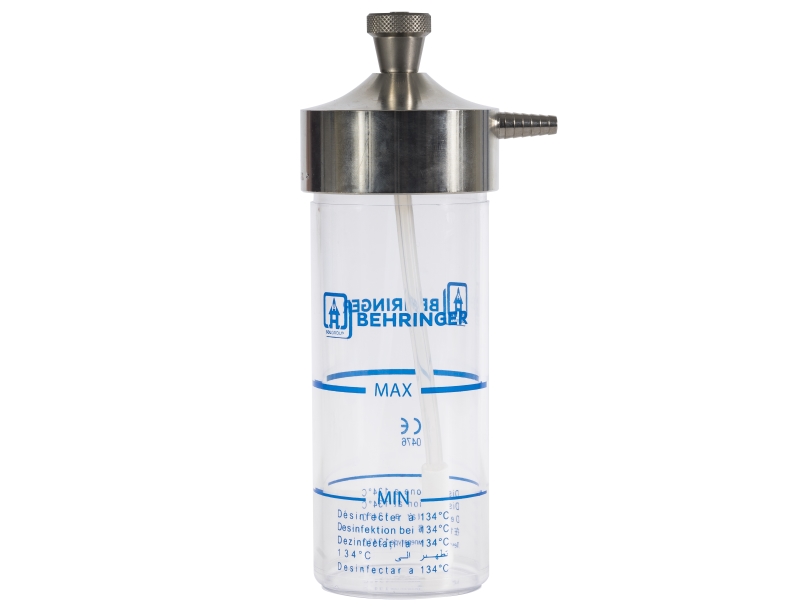

The bubbling humidifier is used in oxygen therapy to humidify the oxygen breathed by the patient; it is connected downstream of the flowmeter by means of a threaded nut; it is a non-active class IIa medical device, supplied non-sterile; the containment vessel has a maximum capacity of 300 cc, biocompatible in accordance with ISO 10993-1, with a polypropylene or metal cap and a hose-end outlet; the humidifier (vessel, cap, O-ring and silicone tube, excluding the diffuser) can be sterilized in an autoclave for a maximum of 100 cycles of 18 min each at 121°C or 100 cycles of 10 min each at 126°C or 85 cycles of 4 min each at 134°C, after rinsing; validated procedure, in accordance with ISO 17664-2 and ISO 17665 by an accredited laboratory (test report no. 26VA00449).
Normatives
EN ISO 14971 | EN ISO 15001 | EN ISO 20789 | EN ISO 17664-2 | EN ISO 17665Components
Makrolon jar that can be sterilized in an autoclave at 134 °C.
One inlet with G 1/4" F R or M12x1 F swivel nut.
One hose connector outlet.
Silicone hose.
Polyethylene bubble diffuser.
White polypropylene or metal cap.
EPDM PEROX O-ring.
Maintenance kit
Technical data
| CODE | VOLUME | CONNECTION | CAP | JAR | WEIGHT |
| HU004 | 300 cc | G1/4" F R | PVC | Makrolon 2458 | 0.20 kg |
| HU005 | 300 cc | G1/4" F R | Metal | Makrolon 2458 | 0.20 kg |
| HU008 | 300 cc | M12x1,25 F R | PVC | Makrolon 2458 | 0.20 kg |
