LEAF SOCKET - BS 5682
Product description
The new LEAF BS terminal units in agreement to BS 5682 meets the requirements of functionality, security, innovation and design; the socket has a brass body and a male clutch locking system with steel balls; the coupling flange with the base is adjustable to be able to position the terminal in the desired orientation; the fixing on the base block is simple and it has quick maintenance thanks to the change of one single pre-assembled cartridge; thanks to the incorporated NFC system, traceability is facilitated and the management of maintenance thanks to the MyBehringer App to be installed on your smartphone.
Normatives
EN ISO 9170-1 | EN ISO 13485 | BS 5682 | EN ISO 15001Components
Socket and base made of CW614N chemically nickel-plated brass.
Release ring nut.
Stainless steel springs.
EPDM perox O-Ring.

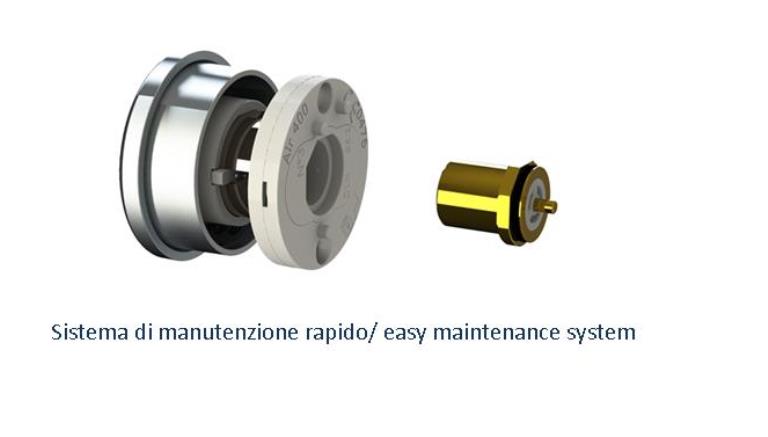

Maintenance kit
| CODE | GAS | DESCRIPTION |
| HK210BS11 | ALL | MAINTENANCE CARTRIDGE LEAF BS |
Technical data
| CODE | GAS | FLOW RATE | MAXIMUM PERESSURE DROP | WEIGHT |
| HP301BSA4BEH | Air | 40 l/min | 0,15 bar | 0.13 kg |
| HP301BSA8BEH | Air-800 | 350 l/min | 0,70 bar | 0.13 kg |
| HP301BSM1BEH | MixO2/N2O | 40 l/min | 0,15 bar | 0.13 kg |
| HP301BSNOBEH | N2O | 40 l/min | 0,15 bar | 0.13 kg |
| HP301BSOXBEH | O2 | 40 l/min | 0,15 bar | 0.13 kg |
| HP301BSVABEH | Vac | 25 l/min | 0,15 bar | 0.13 kg |
