Descripción del producto

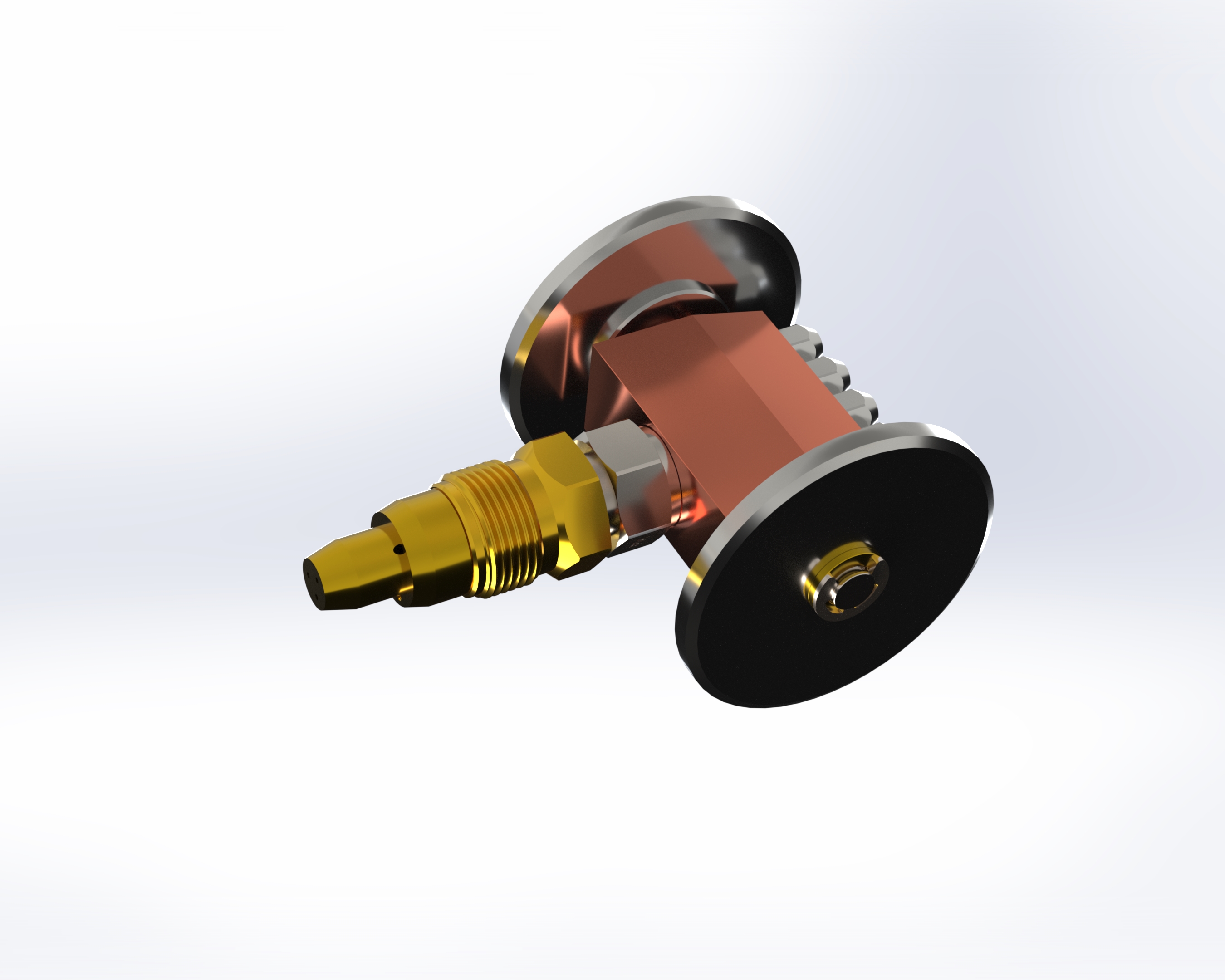

The SECUR line is designed for blazing slabs or flat surfaces; slabs can be positioned either vertically or horizontally.
Flaming is achieved by advancing the lance at a 45° angle. If the slab is less than 30 mm thick, it is strongly recommended to use the model with water cooling capability (code M0037H,M0037G).
The entire SECUR series uses the LEM/S universal handle (code M0007) and uses oxygen and propane gas.
Reglamentos
Componentes
Kit de mantenimiento
| CODE | SPARES |
| M0043A | SMG/PM 6 MIXER |
| M0043B | SMG/PM 3 MIXER |
| C0194A | STEEL WHEEL Ø 60 mm |
| M0068 | STAINLESS STEEL NOZZLE |
Datos técnicos
| CODE | ITEM | P O2 | Q O2 | P C3H8 | Q C3H8 |
| M0007 | LEM/S GRIP | ||||

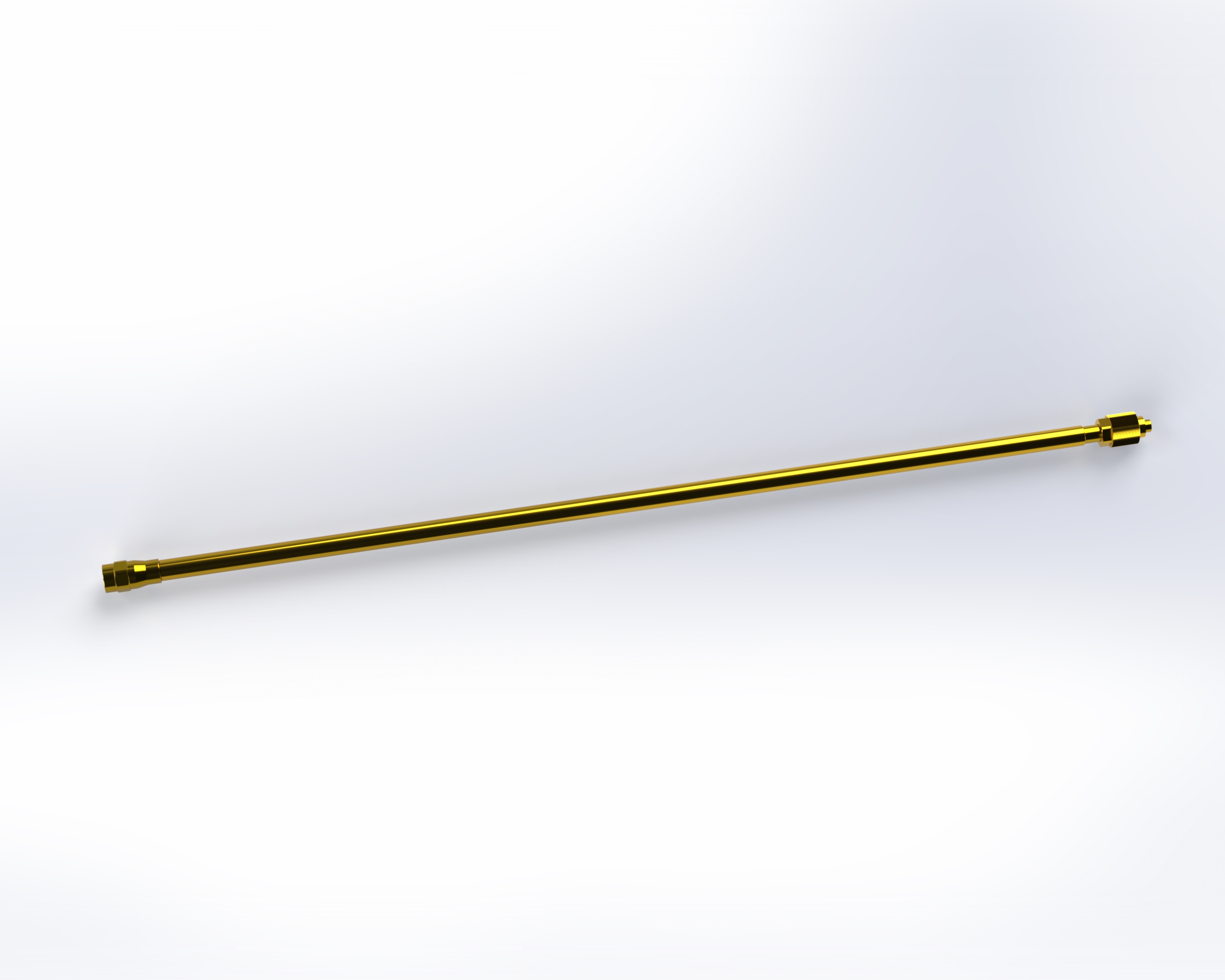

| M0066 | SECUR LANCE | ||||
| M0066H | SECUR - 30 mm COMBS | 4,5 bar | 4,7 Nm³/h | 1,2 bar | 0,8 Nm³/h |

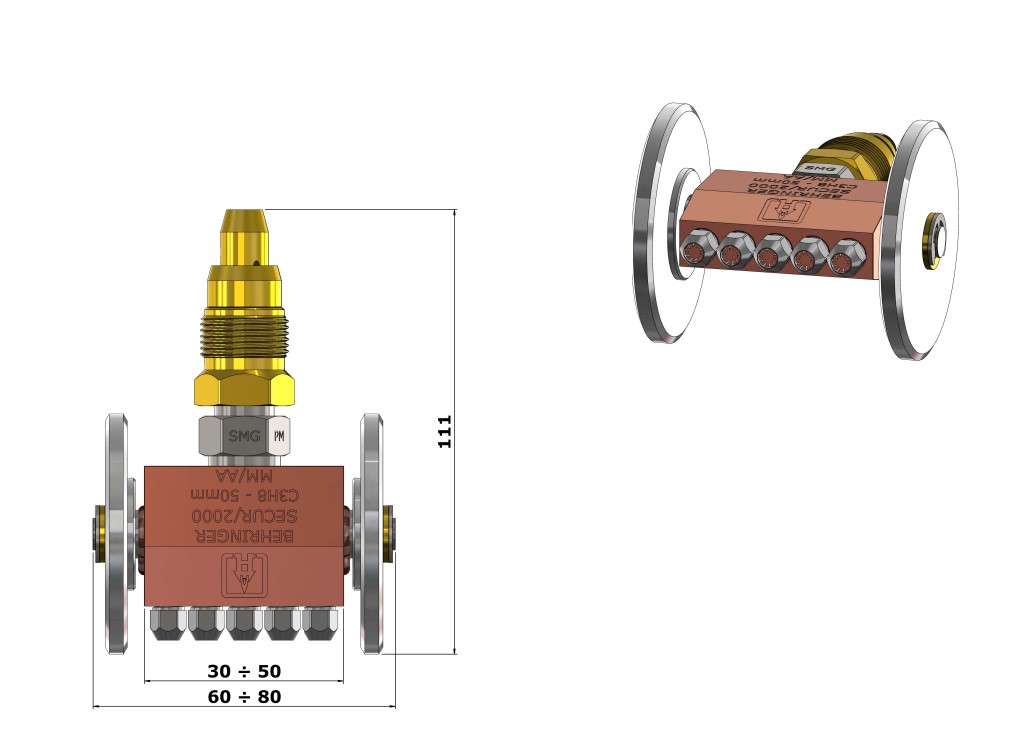

| M0066I | SECUR - 50 mm COMBS | 4,5 bar | 7,35 Nm³/h | 1,2 bar | 1,3 Nm³/h |

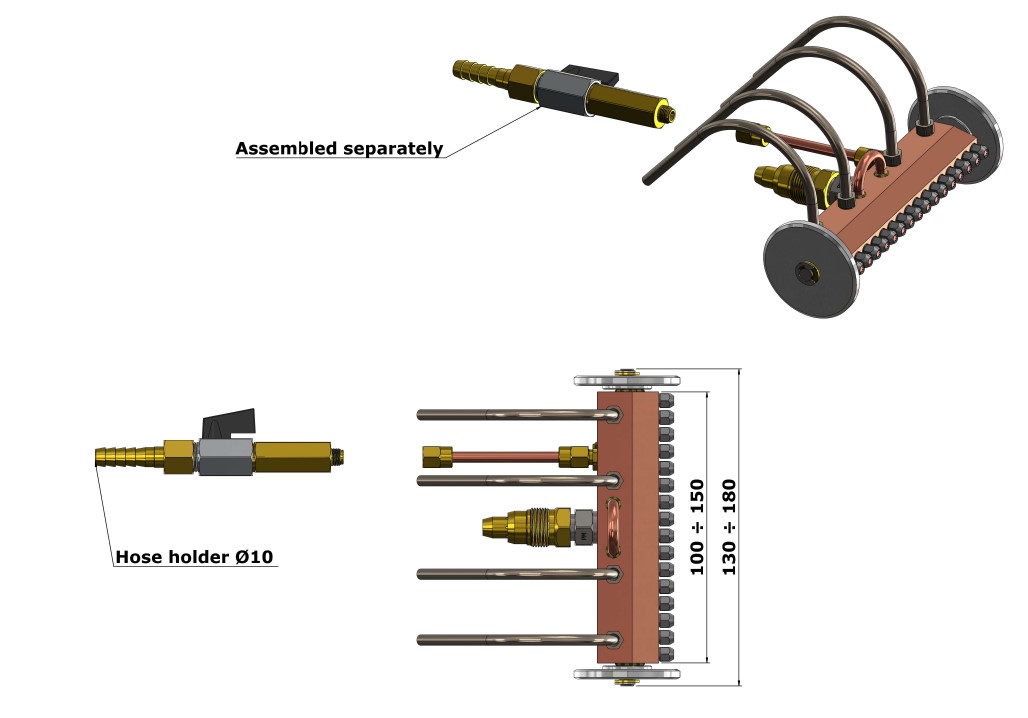

| M0037H | SECUR - 100 mm COMBS | 4,5 bar | 9,4 Nm³/h | 1,2 bar | 1,4 Nm³/h |
| M0037G | SECUR - 150 mm COMBS | 4,5 bar | 11,93 Nm³/h | 1,2 bar | 1,5 Nm³/h |
